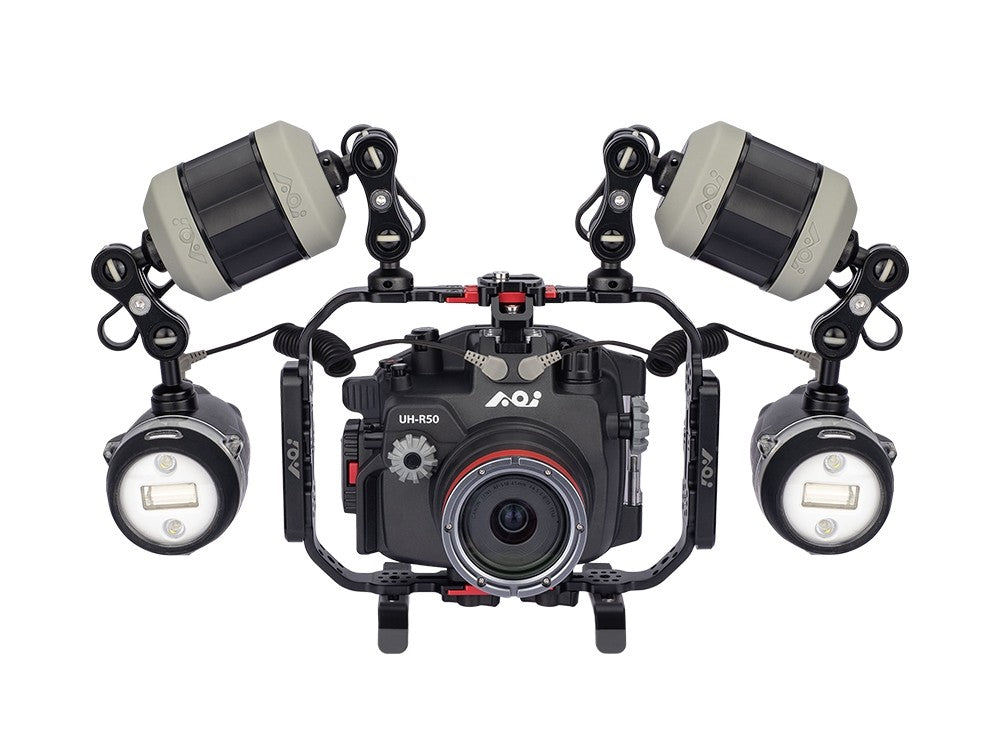

AOI Canon R50 Passion Combo 60 Meter Underwater Housing UH-R50 & Light Package

AOI

AOI Canon R50 Passion Combo 60 Meter Underwater Housing UH-R50 & Light Package

AOI's Passion Combo for the Canon EOS R50 includes a dual strobes and mounting hardware and float arms.

One of the smallest mirrorless camera systems available featuring an 24 Megapixel APS-C sensor in an incredibly travel friedly package.

Designed around the 18-45 Kit lens that comes with the Camera and contructed from Polycarbonate it is compact and lightweight making it an affordable option for this camera.

£1,359.00 GBP £1,499.00 GBP

Taxes included. Shipping calculated at checkout.

1 left

Price Match Promise

Free Shipping on orders over £100*

Hazzle Free Returns

Explore the AOI Canon R50 Passion Combo

A good upgrade for those wanting more control than a smartphone

Built-in Port for security and simplicity

One of the Lightest Mirrorless Systems Available

Vertical Intelligence Feature for Social-Media content creation

The AOI Canon R50 Passion Combo includes AOI's lightweight waterproof housing for the Canon EOS R50 and a pair of AOI Q1 Ultracompact strobes with all required fiber optic connections and light mounting system. A pair of float arms make the system easier to handle in the water and the Modular System stands provide stability when setting up and making adjustments to the rig before/post dive.

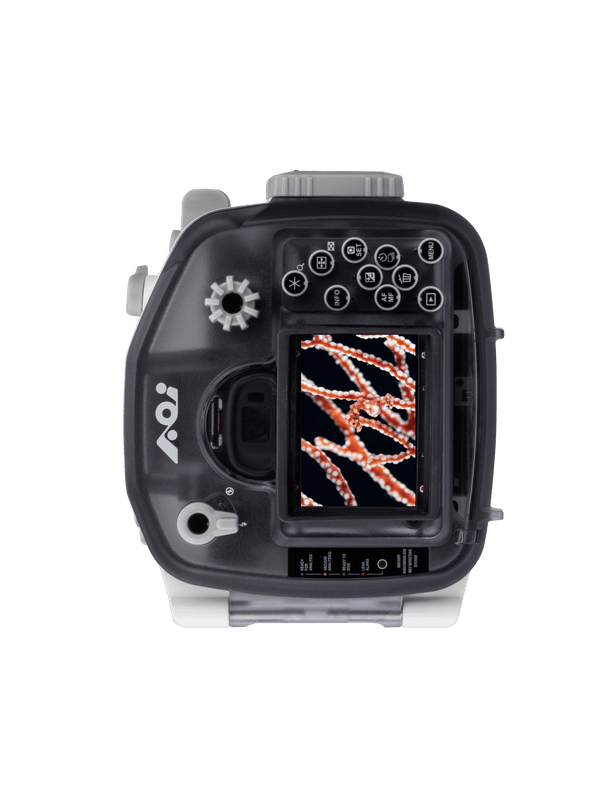

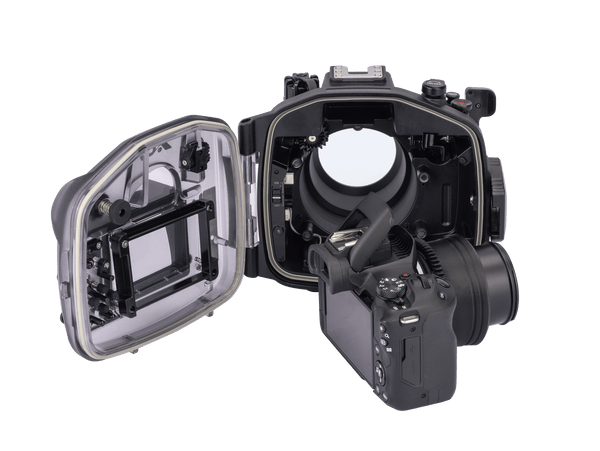

The UH-R50 is an incredibly travel friendly housing for the Canon R50 mirrorless camera. Designed around the 18-45 Kit lens that comes with the Camera and constructed from Polycarbonate it is compact and lightweight making it an affordable option for this camera.

Our Favourite Features

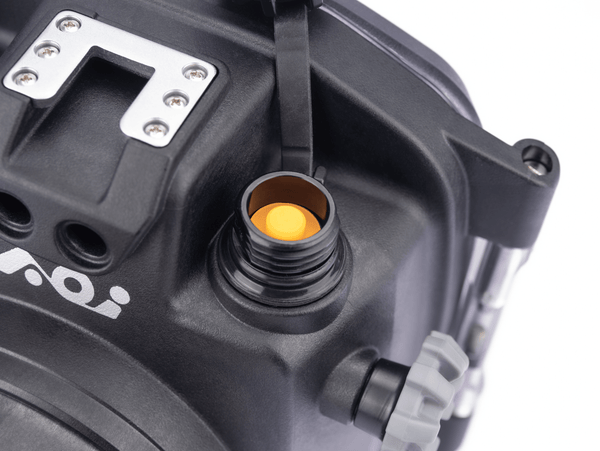

Pre-Dive Housing Integrity Test

Integrated Vacuum System

AOI's Vacuum Analyzation and Wet Detection System is included already installed on the housing. The Vacuum system lets you complete a dry test of the housing's integrity before getting into the water. Also included is a Vacuum Pump and a spare O-Ring for the Vacuum Valve.

Strobe Triggering

Built-in Support for Native Camera Flash

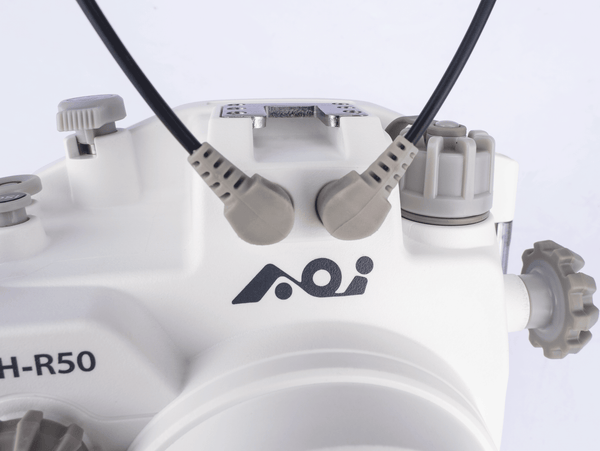

There is space in the housing to use the Camera's built in pop-up flash to trigger your strobes via the fibre optic ports on the front of the housing. We recommend pairing with the AOI Q1 Ultra Compact Strobe. The Q1 Strobes are included as part of the R50 Passion Combo Set.

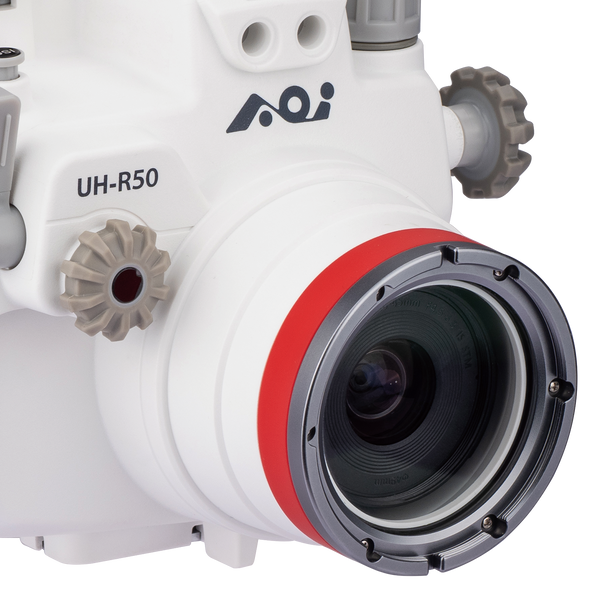

Fixed-Port Advantage

Built-In Port for simple setup and minimal maintenance.

By using a fixed flat port optimized exactly for the kit lens, we have removed the high cost, complexity, and flood risks of interchangeable port systems. It offers a true "plug-and-play" experience while remaining fully compatible with standard 67mm wet lenses.

Lightweight & Compact

Travel Friendly Design

It is one of the lightest mirrorless setups on the market, making it easy to travel with and handle underwater. With Strobes and a wide-angle lens the package is similar in size to a Micro-four-thirds sensor camera.

Designed for Vertical Video

Built for Modern Creators

The Canon R50 Camera features a mechanical design that lets creators easily switch between landscape and vertical video — making it perfect for shooting Instagram Reels and TikToks.

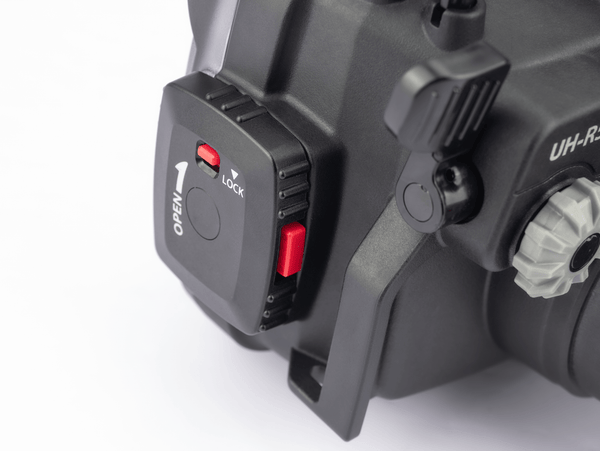

Secure Design

Rotary Latch with Lock

Optional Viewfinder: AOI UMG-01 Magnifier

AOI make a series of viewfinders which give you a better view of the camera's LCD or viewfinder.

The AOI UMG-01 LCD Magnifier includes dioptric adjustment giving you the ability to judge the LCD image on your camera with greater precision.

If you are shooting Macro and Supermacro we highly recommend UMG-05 90° viewfinder which lets you get the camera housing nice and low for the perfect angle (UMG-5 does not include dioptric adjustment).

WHICH WET LENS SHOULD I PAIR WITH THE AOI Canon R50 Passion Combo?

The magic of the wet lenses is their tremendous versatility, paired with outstanding in-water performance. Both macro and super wide angle interchangeable optics can be available to the underwater photographer on the same dive.

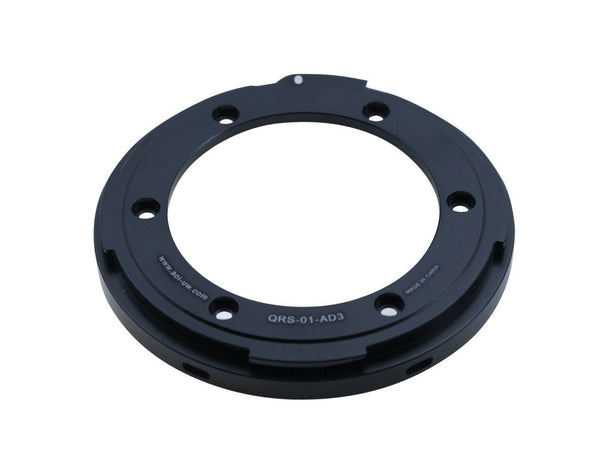

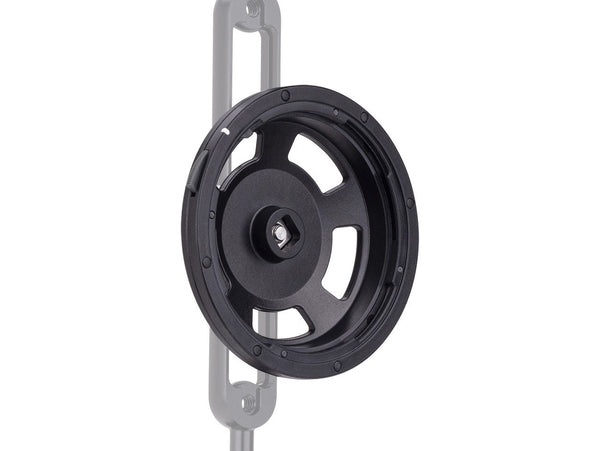

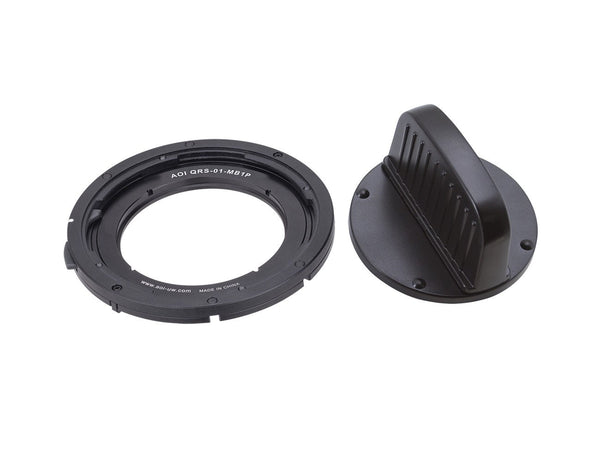

We recommend using AOI's Quick Release System to allow for easy removal and replacement of the Lenses underwater.

UWL-09 PRO

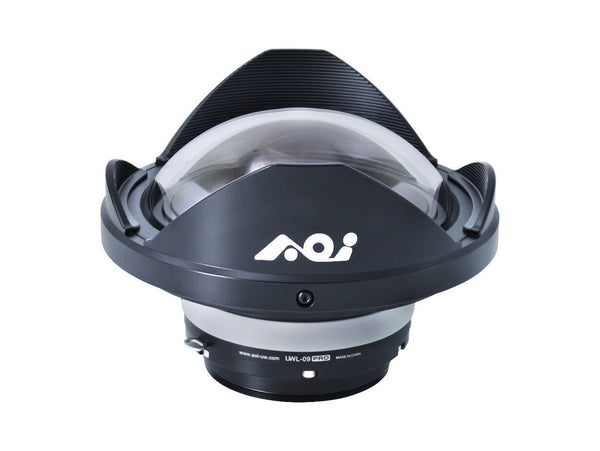

AOI UWL-09PRO 0.45X Wide-Angle Wet Lens

£879.00 GBP

The AOI UWL-09 Pro is AOI's premium Wide-Angle Wet Lens. Featuring up to 130° diagonal field of view at 28mm - wider than most traditional wide-angle lenses behind a dome port. Multiple glass elements minimise distortion offering a sharp image even when zoomed in and allowing the camera to focus right in front of the lens.

The superior optics of this lens compared to the UWL-09 are recommended for high resolution sensor cameras like the Sony A7 series but do come with additional weight.

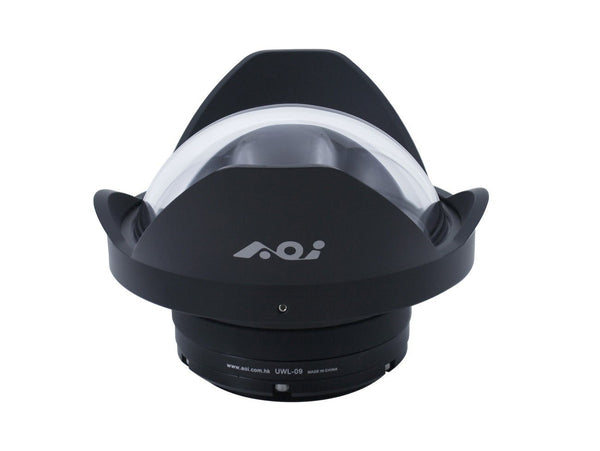

UWL-09

AOI UWL-09 0.45X Wide-Angle Wet Lens

£619.00 GBP

The AOI UWL-09 provides up to 130° diagonal field of view at 28mm (Full frame equivalent) - wider than most traditional wide-angle lenses behind a dome port. Multiple glass elements minimise distortion offering a sharp image even when zoomed in and allowing for much closer focusing than a traditional dome port.

The UWL-09 is lighter than the Pro version of the lens making it ideal for travel and well suited to smaller systems like the Canon G7X and Sony RX100 Camera series.

AOI UWL-09 0.45X Wide-Angle Wet Lens

£619.00 GBP

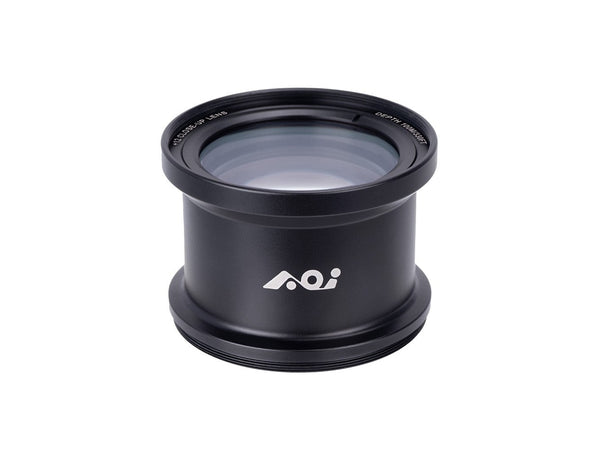

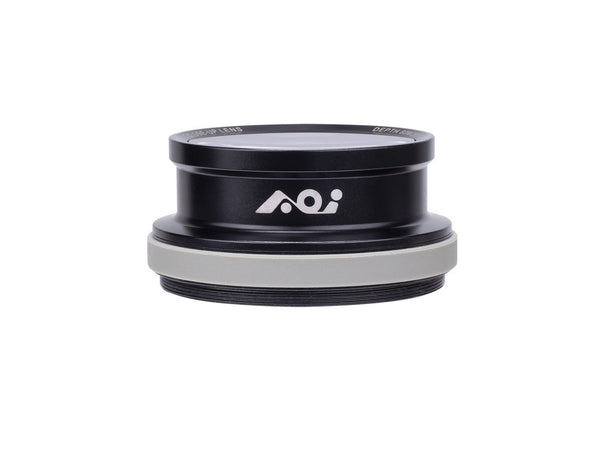

Macro Lenses

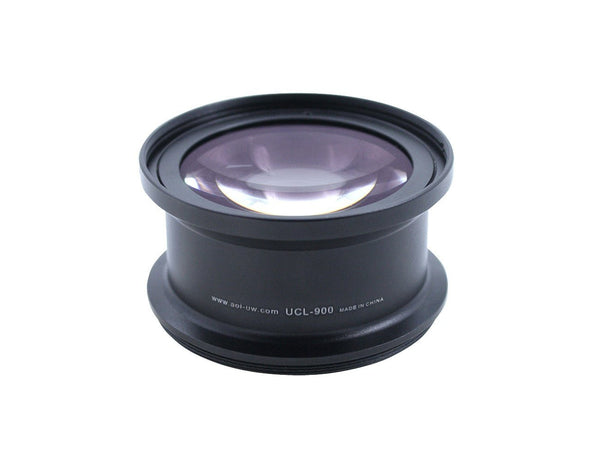

For the Macro aficionados we recommend the AOI UCL-90PRO and UCL-900PRO. The PRO range of AOI's underwater close up lenses offer superior image quality and allow for improved auto-focusing. The UCL-90PRO is your go to supermacro lens for the widest range of subjects. Use the UCL-900PRO only for the very smallest - think Pygmy Seahorses and Skeleton Shrimp.

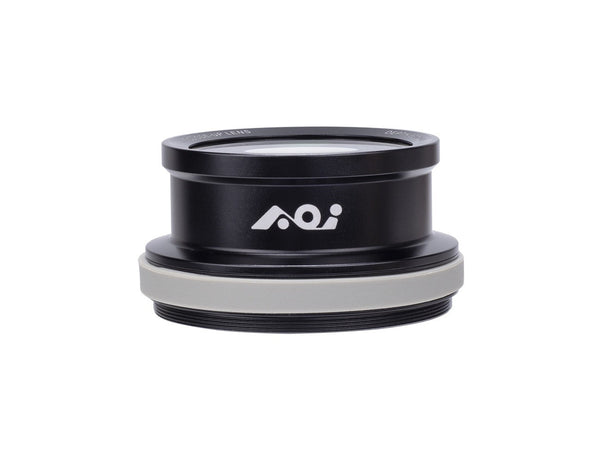

AOI UCL-90 PRO +18.5 Diopter

AOI UCL-90PRO +18.5 Underwater Close-up Lens

£489.00 GBP

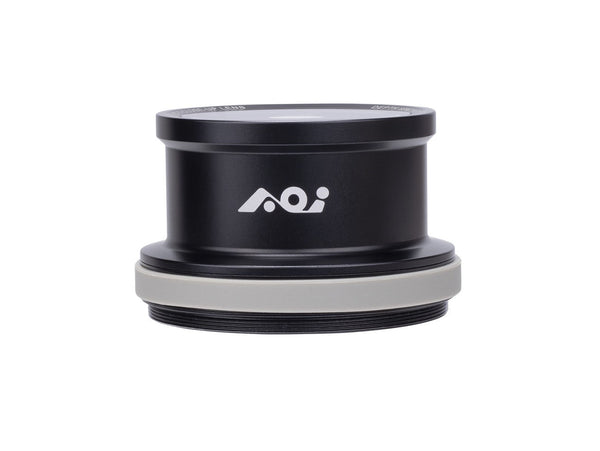

AOI UCL-900 PRO +23.5 Diopter

Also available in a Dual Strobe Package

AOI Canon R50 60 Meter Underwater Housing UH-R50

AOI R50 Standard Housing

AOI R50 Passion Combo

The AOI R50 Housing is available as stand alone housing or as a Passion Combo kit with 2 Strobe lights, a tray and float arm system included.

Additional Accessories included in the Passion Combo Kit

2x AOI Q1 Ultra Compact Strobes
2x AOI Fiber Optic Cables

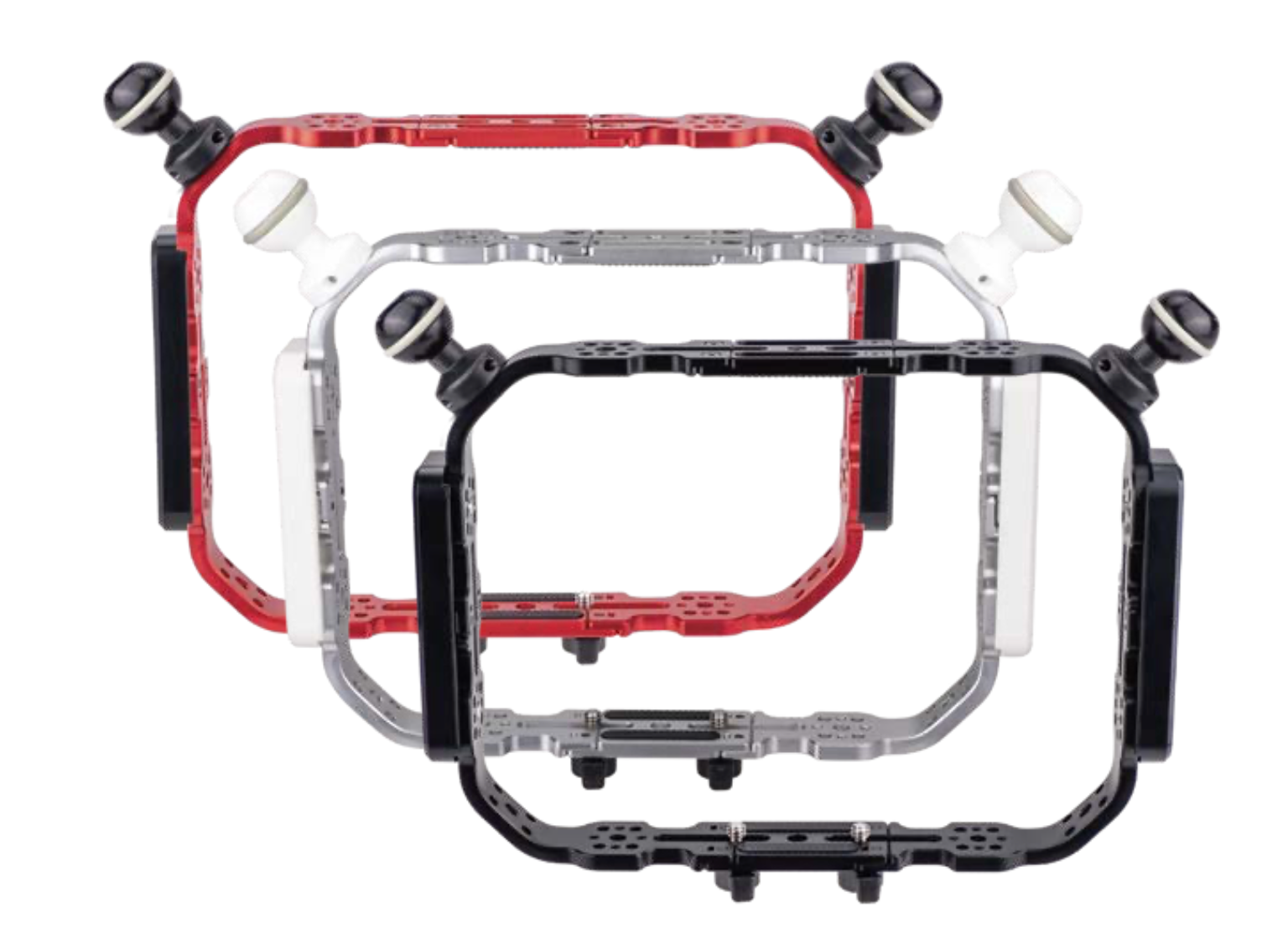

AOI Modular Tray System with Stability Brackets and Ball Mounts
2x AOI Float Arms
4x AOI Clamps
AOI Stand Mounts for MDS Tray

Key Features

Waterproof to 60 Meters
Integrated Port with Zoom Gear for the Canon RF-S 18-45mm f/4.5-6.3 IS STM Lens
Vacuum System Included for pre-dive integrity test
Supports the native pop-up Camera Flash
Lightweight Polycarbonate Construction

Canon R50 Passion Combo Technical Specifications

MODEL NUMBER: AOI UH-R50-COMBO-01-BLK, AOI UH-R50-COMBO-01-WHT

CONTENT:

1x UH-R50 Underwater Housing
2x UCS-Q1 Ultracompact Strobe
4x CP-02 Standard Clamps
2x AMF-M205 Float Arm
Modular Tray System with 50mm Extension & Screws
2x Ball Mounts
Stability Bracket for UH-R50
Stands for Modular Tray System
2x Fibre Optic Cables

*Strobe Batteries not included - available seperately

DESCRIPTION: Underwater Housing for Canon EOS R50 Passion Combo Camera (Black / White Color)

HOUSING COLOUR: AOI UH-R50-WHT, AOI UH-R50-BL

COMPATIBLE CAMERA MODEL: Canon EOS R50 Camera

MAIN MATERIAL: PC +GF

DEPTH RATING: 60 Meters

PORT RING: M67

FLASH TRIGGER METHOD: FLASH TRIGGER METHOD

WATER LEAKAGE PROTECTION:

Built-in Vacuum Analyzation and Wet Detection System (VWS)
BATTERY POWER: Built-in Rechargeable Lithium Polymer Battery (3.7V)
BATTERY CHARGING: By USB Charger DC5V, 0.5A (not included)
Approx. 1.5 Hours for a full charge
BATTERY OPERATION TIME: Approx. 100 hours

DIMENSIONS: 172MM(L) X 160(W) X 145(H)

WEIGHT:

On Land : Approx. 950g
(Only included the Housing Body, LCD Monitor Hood, Zoom Gear, Port Front Cap)
Underwater : Appro.x -280 g
(With Canon EOS R50 Camera, Camera Batt; RF-S18-45mm F4.5-6.3 IS STM Lens
Zoom Gear, LCD Monitor Hood)

STANDARD ACCESSORIES:

USB Type-C Charing Cable (AOI USBC-02) x1pc.
LCD Monitor Hood (AOI LCDH-01) x1pc.
Spare O-ring for Vaccum Valve Protection Cap (AOI SRVV-02-GRY) x1pc.
Silicone Grease (AOI SIGR-5) x1pc; Silica Gel (AOI SIGE-3) x1pc.
Lanyard (AOI LYD-01) x1pc; Fiber Optic Cable Port Plug x2pcs
Port Front Cap for M67 Thread (AOI LFC-01) x1pc.
Vaccum Hand Pump (AOI VP-03) x1pc.
Zoom Gear for Canon RF-S18-45mm F4.5-6.3 IS STM Lens (AOI LG-CRF-S1845) x1pc.
Extended Shutter Release Lever x1pc.
Spare Main Seal O-Ring (AOI SOR-07) x1pc; Spare Secondary Seal Ring (AOI SSR-07) x1pc.
O-ring Remover (AOI ORR-02) x1pc. AOI Logo Stickers x1pc.
Micro- Fiber Cleaning cloth (AOI MC-01) x1pc.

*Specifications and Appearances are subject to change without prior notice.

About the Canon EOS R50 Camera

The Canon ROS R50 is an ultra-compact mirrorless camera. Featuring a 24.2 Megapixel APS-C Sensor with Dual Pixrel CMOS AF II tracking and uncropped 4K video at up to 30 frames per second. Together with RF-S 18-45mm Kit lens it is a travel friendly choice with great potential for photographers.

KEY FEATURES:

24.2 Megapixel CMOS (APS-C) sensor
Smart Features for Shooting Veritcal Video
4K uncropped movie at up to 30 fps oversampled from 6K
Dual Pixel CMOS AF II
12 fps Electronic First Curtain and 15 fps Electronic Shutter Continuous shooting
Record video for more than 30min
UVC/UAC compatibility for webcam and streaming

What's In The Box?

R50 Housing -Black
Q1 Strobe - Black x2pc*
Fiber Optic Cable x2pc
Modular Trays System with 50mm Extension x1pc
Stability Bracket for MDS x1pc
Stand for MDS x2pc
Thumb secrew for MDS x2pc
CP-02 Standard Clamp x4pc
AMF-M205 Float Arm x2pc
Standard Ball Mount x2pc
USB Type-C Charing Cable (AOI USBC-02) x1pc.
LCD Monitor Hood (AOI LCDH-01) x1pc.
Spare O-ring for Vaccum Valve Protection Cap (AOI SRVV-02-GRY) x1pc.
Silicone Grease (AOI SIGR-5) x1pc
Silica Gel (AOI SIGE-3) x1pc.
Lanyard (AOI LYD-01) x1pc;
Fiber Optic Cable Port Plug x2pcs
Port Front Cap for M67 Thread (AOI LFC-01) x1pc.
Vaccum Hand Pump (AOI VP-03) x1pc.
Zoom Gear for Canon RF-S18-45mm F4.5-6.3 IS STM Lens (AOI LG-CRF-S1845) x1pc.
Extended Shutter Release Lever x1pc.
Spare Main Seal O-Ring (AOI SOR-07) x1pc; Spare Secondary Seal Ring (AOI SSR-07) x1pc.
O-ring Remover (AOI ORR-02) x1pc.
AOI Logo Stickers x1pc.
Micro- Fiber Cleaning cloth (AOI MC-01) x1pc.

*Batteries for Q1 Strobe NOT included

AOI UWL - 03II 0.73X Wide Angle Conversion Lens Mark II for Action Cameras

One camera, Endless perspectives

Attaching different wet lenses to your housing port allow you to significantly change your field of view through the dive. You can shoot a tiny shrimp and a massive sea fan minutes apart on the same dive.

AOI Wet Lenses & Accessories | Underwater Photography Optics

Keep it Safe with a secure line

Keep your new housing securely attached to your Dive equipment for peace and mind throughout your Dive.

Spring Coiled Lanyard with Quick Release Buckle and Swivel Eye Bolt Snap

£25.00 GBP

Whats in the box?

R50 Housing -Black
Q1 Strobe - Black x2pc*
Fiber Optic Cable x2pc
Modular Trays System with 50mm Extension x1pc
Stability Bracket for MDS x1pc
Stand for MDS x2pc
Thumb secrew for MDS x2pc
CP-02 Standard Clamp x4pc
AMF-M205 Float Arm x2pc
Standard Ball Mount x2pc
USB Type-C Charing Cable (AOI USBC-02) x1pc.
LCD Monitor Hood (AOI LCDH-01) x1pc.
Spare O-ring for Vaccum Valve Protection Cap (AOI SRVV-02-GRY) x1pc.
Silicone Grease (AOI SIGR-5) x1pc
Silica Gel (AOI SIGE-3) x1pc.
Lanyard (AOI LYD-01) x1pc;
Fiber Optic Cable Port Plug x2pcs
Port Front Cap for M67 Thread (AOI LFC-01) x1pc.
Vaccum Hand Pump (AOI VP-03) x1pc.
Zoom Gear for Canon RF-S18-45mm F4.5-6.3 IS STM Lens (AOI LG-CRF-S1845) x1pc.
Extended Shutter Release Lever x1pc.
Spare Main Seal O-Ring (AOI SOR-07) x1pc; Spare Secondary Seal Ring (AOI SSR-07) x1pc.
O-ring Remover (AOI ORR-02) x1pc.
AOI Logo Stickers x1pc.
Micro- Fiber Cleaning cloth (AOI MC-01) x1pc.
